1.Electrical Characteristics:

Rated Current: 5A max.

Rated Voltage: 20V/DC max.

Withstanding Voltage: AC 100V min.

Insulation Impedance: 100M min.

Contact Impedance: 400m max.

Contact Impedance after endurance: 50m max.

2.Environmental Characteristics:

Working Ambient Temperature -30℃~+85℃

3.Mechanical Characteristics:

Insertion Force: 5~20N

Pull-out Force: 8~20N

Insertion and Pull-out Speed: 12.5/mm, insertion/extraction frequency 500 times/min

Durability: 10000Cycles

Insertion force after durability: 5~20N

Extraction force after durability: 6~20N

4.Salt spray test

Salt spray: 48H

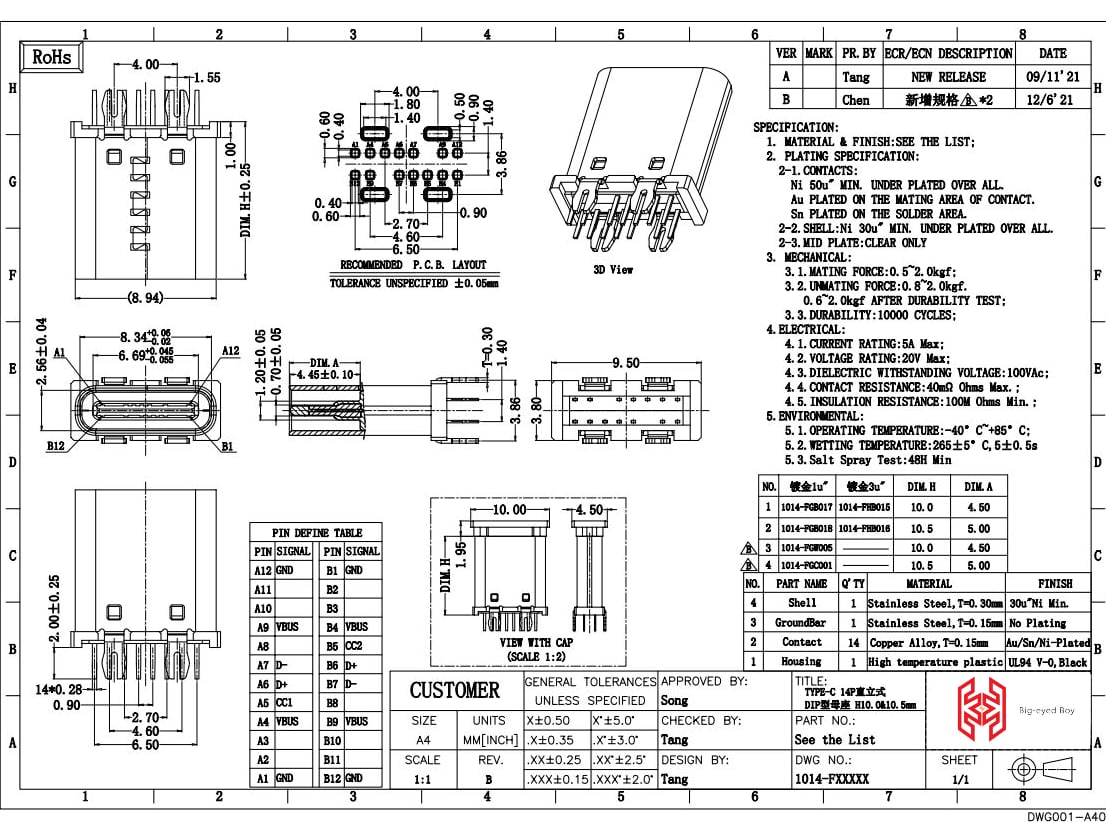

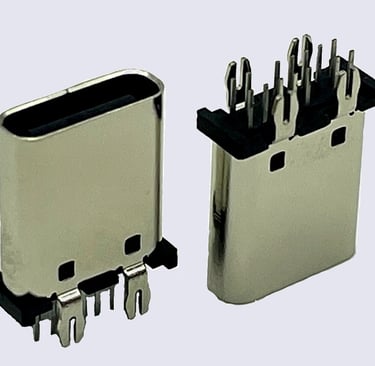

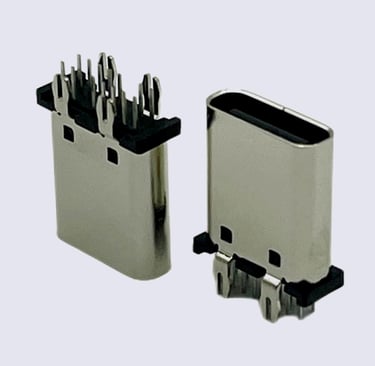

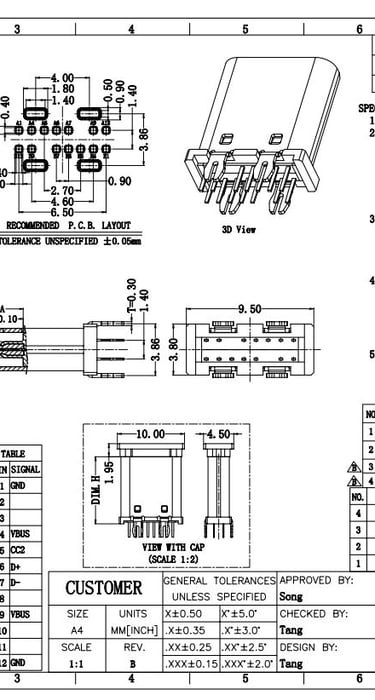

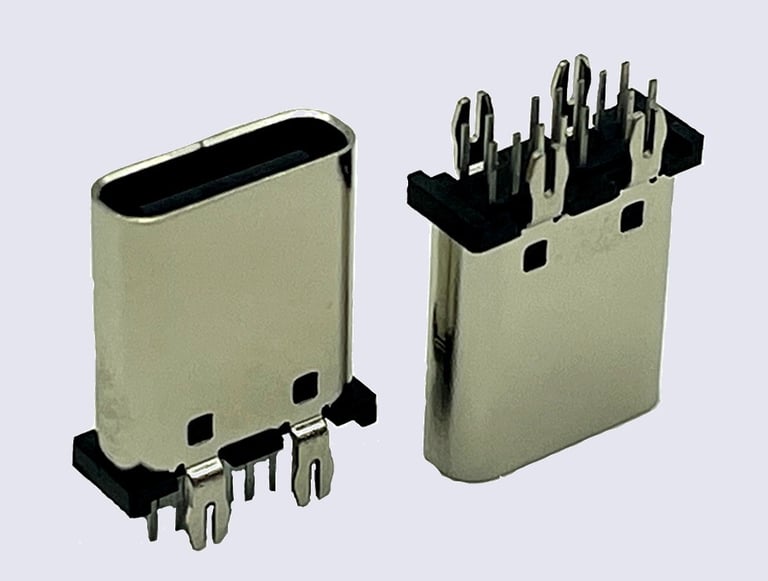

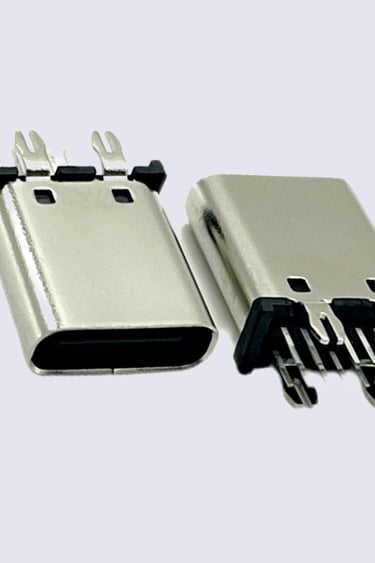

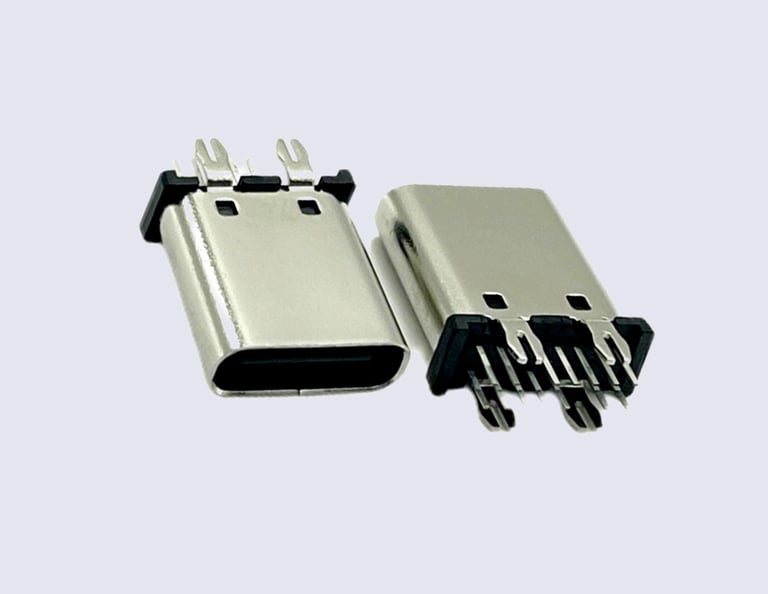

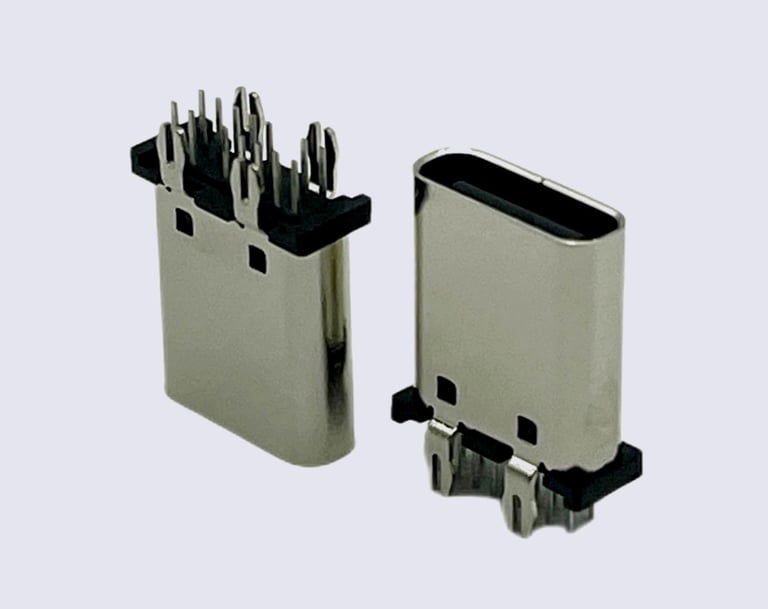

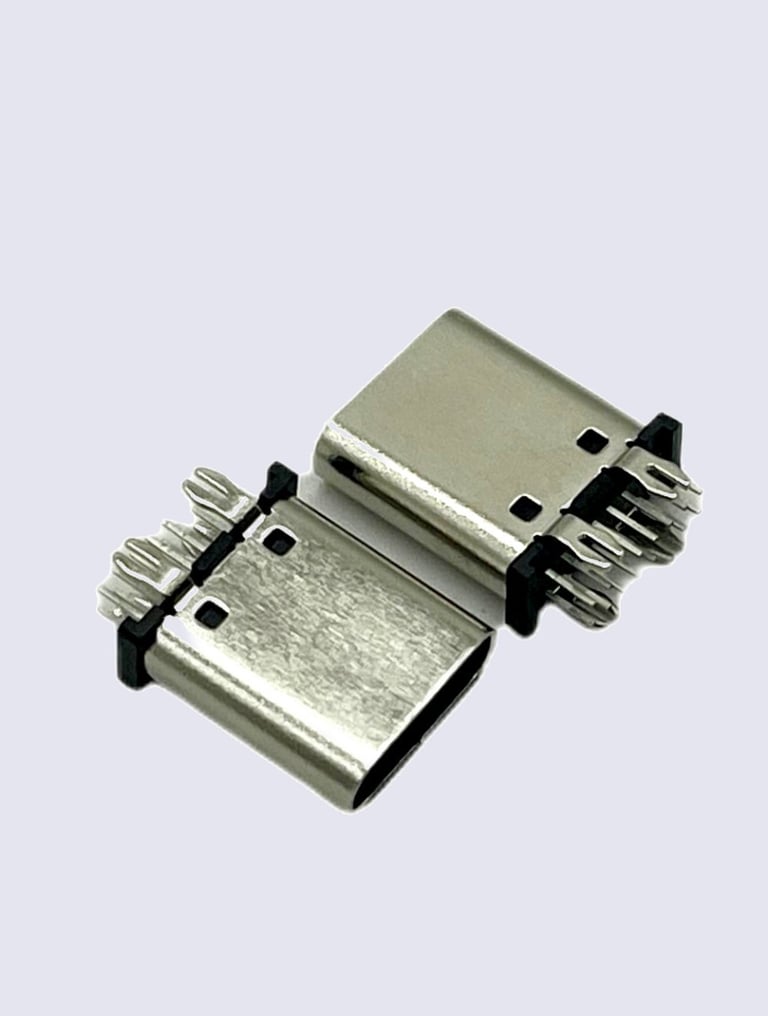

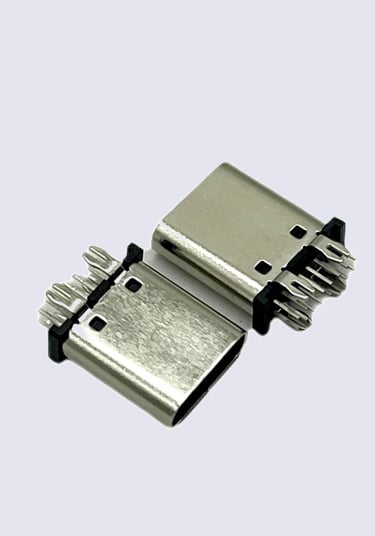

Type-C Receptacle 14Pin（DIP）
